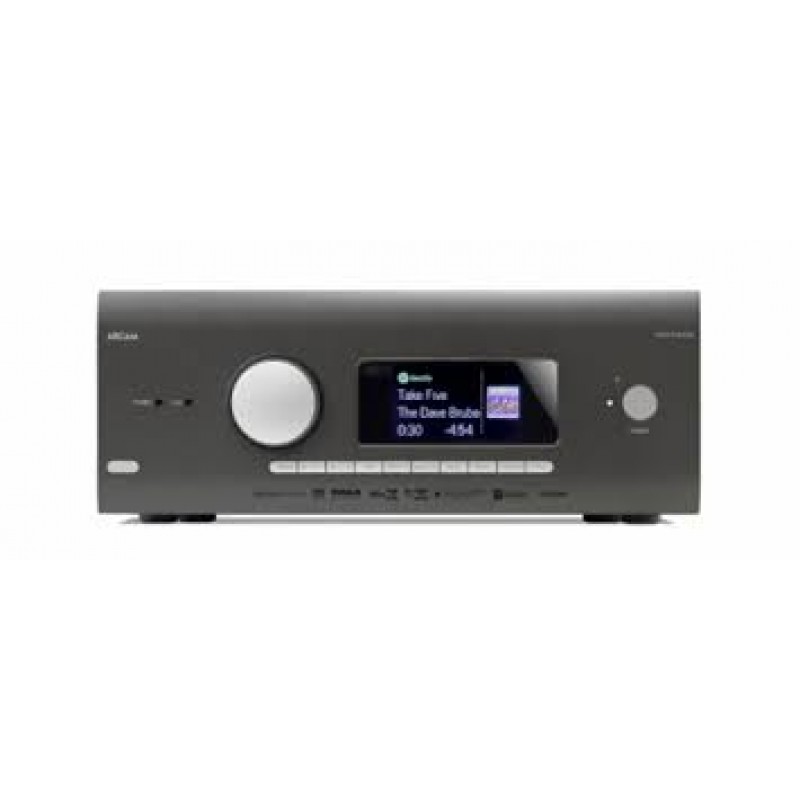

ARCAM AVR10 AV RECEIVER
Click Image for Gallery
The Arcam AVR10 is a high-performance 12-channel AV receiver featuring Class AB amplification. It delivers robust power (60W per channel with all 7 channels driven) and includes premium ESS 9026PRO audiophile DACs, Dirac Live room correction, and immersive 7.1.4 Dolby Atmos and DTS:X decoding.
Key Technical Specifications
| Feature | Specification |
|---|---|
| Amplifier Type | Class AB |
| Audio Channels | 12-channel surround processing (7.1.4) |
| Power Output (per channel) | • 60W (8Ω, all 7 channels driven, 1kHz, 0.2% THD) • 80W (8Ω, 2 channels driven, 20Hz–20kHz) • 100W (4Ω, 2 channels driven) |
| Audio Processing | Dolby Atmos, DTS:X, Auro-3D, IMAX Enhanced |
| Room Correction | Dirac Live |
| DAC Chip | ESS 9026PRO audiophile DAC |
| Video Compatibility | HDMI 2.0b with HDCP 2.2, 4K UHD pass-through, HDR-capable (including Dolby Vision) |
| HDMI Ports | 7 Inputs, 2 Outputs (eARC compatible) |
| Streaming & Network | Apple AirPlay 2, Google Chromecast, Bluetooth aptX HD, MQA supported, Roon Ready |
| Dimensions (W x D x H) | 433 x 425 x 171 mm (17.0 x 16.7 x 6.7 inches) |
| Weight | 16.5 kg (36.3 lbs) net |
