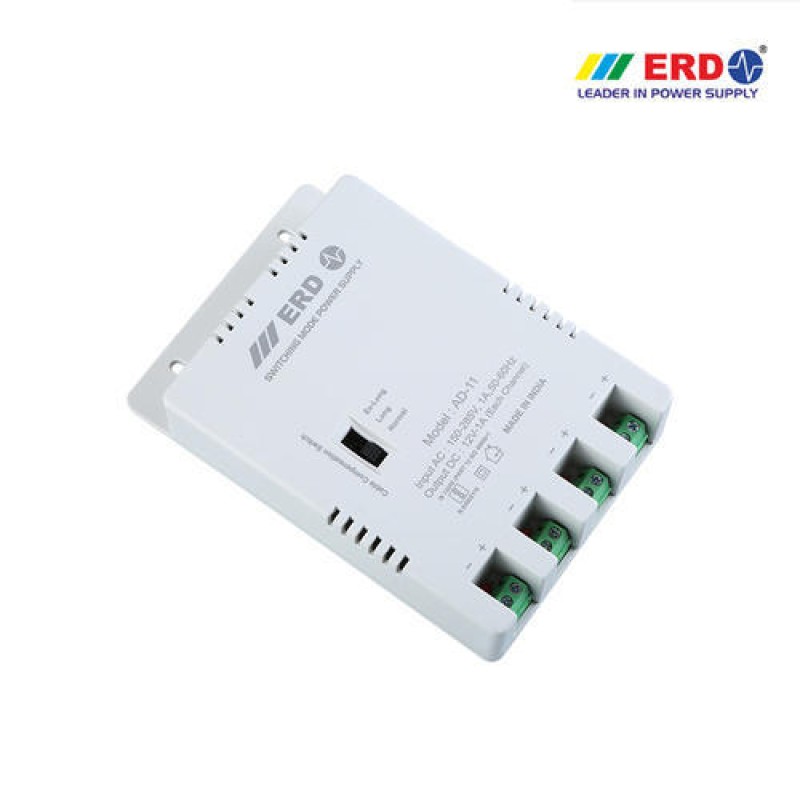

ERD 4 Channel 1 Switch CCTV Power Supply AD11

ERD 4 Channel 1 Switch CCTV Power Supply AD11

Specifications:

  • Input Voltage: 150V to 285V AC, 50/60Hz
  • Output Voltage: 12V-1Amp (Max) Each Channel

Features:

  • BIS Approved
  • Highly Integrated SMPS Switcher I.C Design
  • Stabilized Output Low Interference
  • Surge Protection, Over Temperature Protection
  • Over Current, Voltage Load Protection
  • High-efficiency low energy Consumption
  • Individual output with Resettable Fuse
  • Cable Compensation Switch for Voltage Boosting
  • Short Circuit Auto Restart
  • Low Ripple Voltage (mV P-P): <5%
  • Attractive Grey Color ABS Cabinet.
  • Compact size, light weight Shock Proof.
  • Wall Mountable/ Desktop Type.

Applications:

  • 4 Channel Security Camera Power Supply
  • Power LED Monitor for individual camera channel
  • Individual Camera Drive
